LS2-290 : Universal Dryer Cycling Thermostat, 290°F
SHIPS: IMMEDIATELY
Compare at: $ 26.39
You Save: $ 2.40
SHIPS: IMMEDIATELY

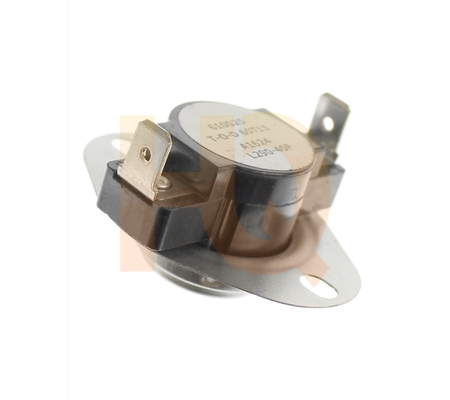

Supco Universal L290 LS2-290 Dryer Cycling Thermostat. The L Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. The cycling thermostat monitors and regulates the temperature inside the dryer.
Differential: 40°
Open (°F): 290°
Close (°F): 250°
Amperage (Full Load) @ 120VAC: 14A
Amperage (Full Load) @ 240VAC: 10A
Amperage (Locked Rotor) @ 120VAC: 72A
Amperage (Locked Rotor) @ 240VAC: 60A
Pilot Duty @ 120VAC / 240VAC: 125 VA
Amperage (Resistive) @ 120VAC / 240VAC: 25A
Possible Repair Solution For:
Not drying properly, will not start, no heat, not enough heat, too hot, drying ends too soon.
Please Note: This is intended as a guideline only, as other items can cause the same symptoms.
This part is also known as an operating thermostat, L290-40F.
| Product Specifications | |
|---|---|
| Skill Level: |  |
Replaces Old Numbers: 342761, 342762, 342764, 39130, 39130-1, 55742, 687152020744, 802335, 9576-203-002, 965166, AP4502907, ERL290, H76694, L290, L290-4, L290-40, LS2-295-4, LS2-300, TJ90L290
