5300-651 : Robertshaw 5300-651 5300-651 Commercial Electric Thermostat 175°F-550°F Bulb Size 3/16" x 11-5/8"

$392.83
Qty:
SKU: 5300-651
In-Stock     SHIPS: IMMEDIATELY

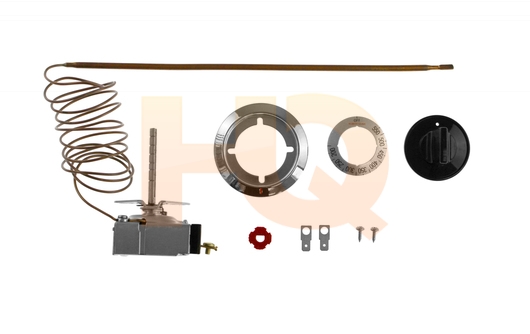

Image of 5300-651

Works with the following brands

$392.83
Qty:

Compare at:   $ 432.11
You Save:   $ 39.28

SKU:   5300-651
In-Stock     SHIPS: IMMEDIATELY

Robertshaw 5300-651 Electric Thermostat
Application commercial cooking industry.
The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snap action mechanism is precise and reliable. This direct acting series of thermostats is
The standard Uni-Kits. feature a 2" break-off shaft, grooved at all the standard stem. lengths. They have a slotted "Uni-Kit" mounting bracket (type #6). to match various mounting dimensions from 1 1/8" to 1 3/4"

Temperature Range 175°F to 550°F (79,4°C to 287,7°C)
Electrical Rating 30 Amps @ 277V AC|20 Amps @ 480V AC|18 FLA, 72 LRA @ 250V AC|125 VA Pilot Duty at 120/277 Volts
Capillary Length 60"
Bulb Size 3/16" x 11-5/8"
Dial Type 4-Way
Mechanical Differential 12°F

  Product Specifications
  Meta Description: Shop Robertshaw 5300-651 5300-651 Commercial Electric Thermostat 175°F-550°F Bulb Size 3/16" x 11-5/8" at AMRE Supply. Buy Online Or Pick Up In Store Today! Order By 4 PM for Same Day Shipping. Huge Appliance Repair Parts Catalog! Over 6



Replaces Old Numbers:   5300-106, 5300-65A, 5300-C103, EA3-363-18, EA5-89-36, EA5-C89-42, S-211-48, SP-197-60
