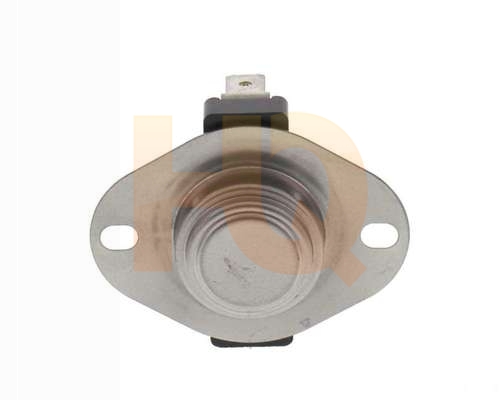

LS2-135 : Universal Dryer Cycling Thermostat, 135°F

$24.95

Qty:

Compare at:   $ 27.45
You Save:   $ 2.50

SKU:   LS2-135

    SHIPS: IMMEDIATELY

Supco Universal L135 LS2-135 Dryer Cycling Thermostat. The L Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. The cycling thermostat monitors and regulates the temperature inside the dryer.

Differential: 15°
Open (°F): 135°
Close (°F): 120°
Amperage (Full Load) @ 120VAC: 14A
Amperage (Full Load) @ 240VAC: 10A
Amperage (Locked Rotor) @ 120VAC: 72A
Amperage (Locked Rotor) @ 240VAC: 60A
Pilot Duty @ 120VAC / 240VAC: 125 VA
Amperage (Resistive) @ 120VAC / 240VAC: 25A

Possible Repair Solution For:
Not drying properly, will not start, no heat, not enough heat, too hot, drying ends too soon.

Please Note: This is intended as a guideline only, as other items can cause the same symptoms.

This part is also known as an operating thermostat, L135-15F.

Product Specifications
Skill Level:
Has 360 Photos:	Yes
