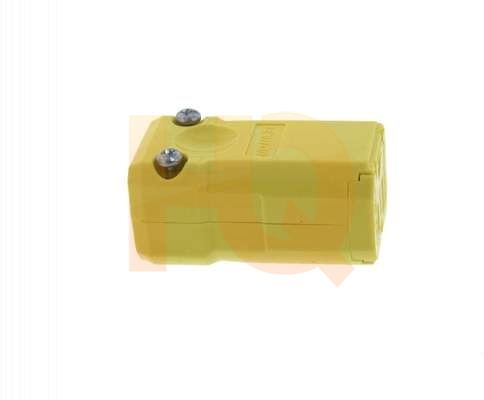

5259-VY : Leviton Python Female End, Grounded, Yellow

$27.54

Qty:

Compare at:   $ 30.29
You Save:   $ 2.75

SKU:   5259-VY

    SHIPS: IMMEDIATELY

Leviton Python Female End, Grounded, Yellow.

When it comes to the demanding nature of today’s commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python’s exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today’s faced-paced world where lost minutes on a job can translate into lost profits.

Grounding: Grounding
Amperage: 15 Amp
Voltage: 125 Volt
NEMA: 5-15R
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cod-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Assembly Screws: Steel, Zinc Plated
Color: Yellow
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings and NEMA I.D. permanently marked on device
Cord Range: .245 - .700
NEMA: WD-6
ANSI: C-73
UL498: File E13399
UL Fed Spec WC-596: File E13393
CSA C22.2 No. 42: File LR-406
NOM: 057
Warranty: Lifetime Warranty
