O6-R206 : Rotom 1/80HP Exhaust Fan & Humidifiers Motors, 1550 RPM, 115V
Compare at: $ 161.87
You Save: $ 14.72
SHIPS: IMMEDIATELY

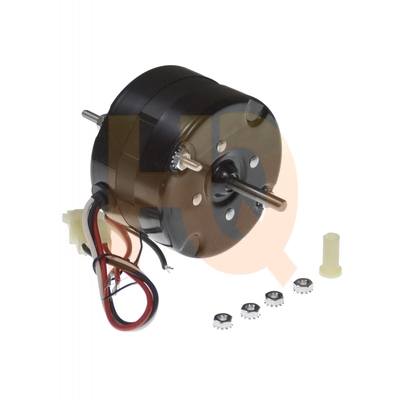

Rotom R206 Exhaust Fan and Humidifier Motor Replacement.
Use with Air King, Miami-Carey Exhaust fans and B.D. Waite Humidifiers.
Also Replaces some Air King & Miami-Carey Fan Motors.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Body Diameter (Inches): | 3.3 |
| Frame: | 3.3 |
| HP: | 1/80 |
| Volts: | 115 |
| Volts (V): | 115 |
| Amperage: | 0.56 |
| Amps: | 0.56 |
| RPM: | 1550 |
| Speeds: | 2 |
| Rotation: Opposite Shaft End: | CW |
| Enclosure: | Totally |
| Shaft: Diameter x Length (Inches): | 1/4 x 1.4 |
| Shaft Dimensions (in): | 1/4 x 1.4 |
| Body Length (Inches): | 2.09 |
| Motor Type: | Shaded Pole |
| Mounting Type: | Stud |
| Mounting: | Stud |
| Wiring: | Wire Harness Plug |
| Bearing: | Ball |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 06-R206, 184770, 2818-410-553, 2818-410-569, 2818-410-823, 2868405005, 2868-405-005, 2868-405-041, 2868407054, 2868-407-054, 2868-807-001, 777980003078, 8363210130, AA2C6239, AK41207A, AK41260A, AK41264A, R206, SM-206, SS206
