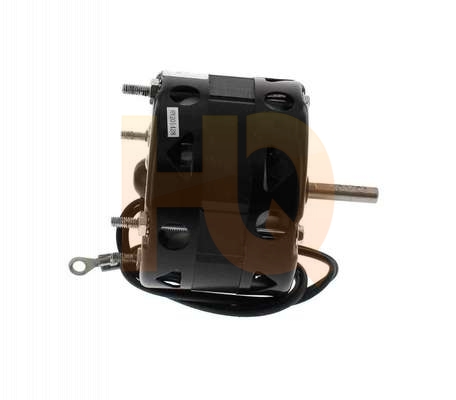

R3-R302 : Rotom 1/100 HP Electric Heater Motor 3.3" Dia. 1550 RPM, 230V
Compare at: $ 109.18
You Save: $ 9.93
Rotom R3-R302 Electric Wall heaters & General Replacement Motor. 3.3" Diameter.
Application Wall Heaters & Other applications using a motor with these specifications.
Use with Blanchard Ness, Federal Pioneer - Westcan, Camco Heaters.
Replaces E01004, L81512W1.
Product Specifications | |
---|---|
Body Diameter (Inches): | 3.3 |
HP: | 1/100 |
Volts: | 230 |
Amps: | 0.20 |
RPM: | 1550 |
Speeds: | 1 |
Rotation: Opposite Shaft End: | CW |
Bearing: | Sleeve |
Enclosure: | Open |
Shaft: Diameter x Length (Inches): | 1/4 x 1.38 |
Motor Type: | Shaded Pole |
Body Length (Inches): | 2.25 |
Mounting: | 4 Rear Studs |
Volts (V): | 230 |
Amperage: | 0.20 |
Shaft Dimensions (in): | 1/4 x 1.38 |
Mounting Type: | 4 Rear Studs |
Rotation: | CW |
Has 360 Photos: | Yes |
Replaces Old Numbers: 2818-440-562, 2868-405-091, 2868-405-173, 2868-505-095, 2868-805-001, 777980002149, AA2C6017, B01MTDM3XC, D1119, JB1P04410V, JBIP04410V, R302, SS302
