SIG101 : Hot SIG101 Surface Ignitor, Silicon Carbide, Round Style
Compare at: $ 50.22
You Save: $ 4.57
SHIPS: IMMEDIATELY

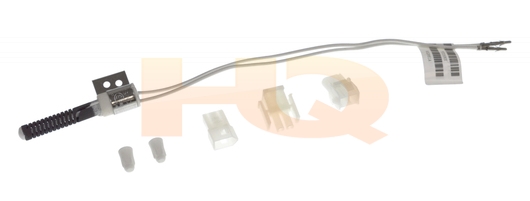

Supco SIG101 Round Hot Surface Ignitor Silicon Carbide.
Includes 3 Styles of Terminal Blocks.
Applications Furnaces, Unit Heaters, Water Heaters, Boilers, Pool Heaters, Etc.
Replacement for Hot Surface Ignitors
Highest density silicon carbide - greater physical strength
Double helix spiral design - requires less current to light
Easy installation - no modifications or adapters necessary
Superior gas lighting ability
Lower power consumption
Higher resistance to oxidation
18 gauge copper high temperature fiberglass insulated lead wires
120VAC
Time to temperature (1800 CF): < 17 seconds @ 120 VAC
Cold resistance: 40-100 Ohms @ 75 CF +/- 10 CF
Amperage: 4 amps @ 132 VAC maximum
Similar to FC035KX, 902694, 902661, L38-693, IG101.
Caution!
Ignitors (also referred to as Igniters) should be handled with care as the ends are very fragile.
Product Downloads
Cross Reference
| Product Specifications | |
|---|---|
| Has 360 Photos: | Yes |
Replaces Old Numbers: 042074089031, 1380-680, 3G-UK4H-PMKR, 687152153657, 902661, 902661A, 902694, B004XS2OLI, B009AX1PE8, B009PARWCA, B00FH7TR5K, FC007, FC035K, FC051, FR-GIXR-NZ08, GP-IG101, IG101, M7-NEVC-3HGI, SIG111
