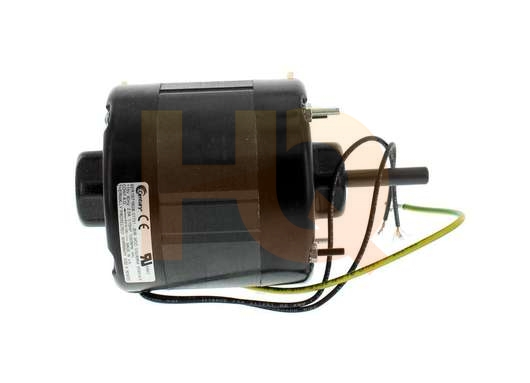

UE-50 : A.O. Smith 1/15 HP Direct Drive Fan & Blower Motor 4.3" Dia. 1050 RPM, 115V
$425.81
Compare at: $ 468.39
You Save: $ 42.58
SKU: UE-50
SHIPS:
2 - 3 WEEKS A.O. Smith 50 Direct Drive Fan & Blower Motor. 4.3" Diameter.
Applications Heating & Venting Fans, Blowers, Air Handlers, Condenser Fans, Unit Heaters.
OEM replacement for Luxaire, Home, Lau, Taylor Freezer, Slirpy, Duotherm, Loren Cook, Lennox, Bohn, Wagner, Reznor, Lincoln, Miller, Hobart, Westinghouse, Intertherm, Jenn Air and similar applications.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Bearing: | Sleeve |
| Frame: | 4.3 |
| HP: | 1/15 |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amps: | 2.50 |
| Phase: | 1 |
| RPM: | 1,050 |
| Speeds: | 1 |
| Rotation: Opposite Shaft End: | CCW |
| Body Diameter (Inches): | 4-5/16 |
| Enclosure: | Open |
| Duty: | Continuous Air Over |
| Shaft: Diameter x Length (Inches): | 3/8 x 2.5 |
| Motor Type: | Shaded Pole |
| Body Length (Inches): | 4.0 |
| Thermal Protection: | Automatic |
| Service Factor: | 1.00 |
| Mounting: | Stud |
| Wiring: | Leads |
| Volts (V): | 115 |
| Amperage: | 2.50 |
| Shaft Dimensions (in): | 3/8 x 2.5 |
| Mounting Type: | Stud |
| Rotation: | CCW |
| Shaft (in): | 3/8 x 2.5 |
| Body Length (In): | 4.0 |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 50, 50AOS, UE50
