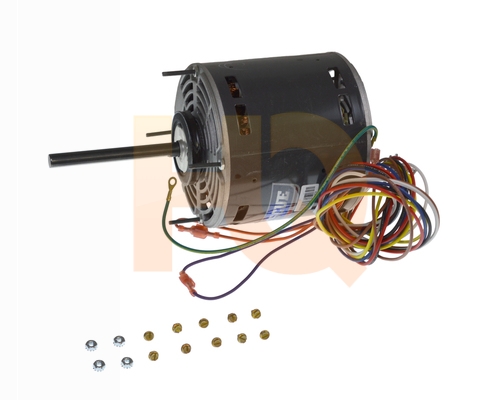

5461 : White Rodgers 1/6-1/2 HP Direct Drive Fan & Blower Motor 5.6" Dia. 1075 RPM, 208/230V
SHIPS: IMMEDIATELY
Compare at: $ 325.84
You Save: $ 29.62
SHIPS: IMMEDIATELY
White Rodgers 5460 Direct Drive Rescue Motor Multi-HP & Multi Fit Truck Stock Less Inventory Required!. 5.6" diameter.
Applications: Commercial and Residential Air Handlers and Furnaces.
Features:
Extended Mounting Studs
Designed For Use With 370v Capacitors
Class B Insulation
36" Leads
High Efficiency Design
Includes Side Shell Holes For Rheem Units
Continuous Duty, Air Over
Reversible Rotation
Automatic Reset Thermal Overload Protector
2.5" Dia. Hub Rings Included
Please Note: Part formally from Emerson.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Bearing: | Sleeve |
| Frame: | 48Y |
| HP: | 1/6, 1/5, 1/4, 1/3, 1/2. |
| Volts: | 208/230 |
| Frequency: | 60Hz |
| Amps: | 1.3, 1.9, 2.8, 3.5, 3.6 |
| Phase: | 1 |
| RPM: | 1085, 1060, 1030, 1050, 1090 |
| Speeds: | 5 |
| Rotation: | Reversible |
| Body Diameter (Inches): | 5.6 |
| Enclosure: | Open Air Over |
| Duty: | Continuous Air over |
| Shaft: Diameter x Length (Inches): | 1/2 x 5.0 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 4.86 |
| Capacitor: | 5 & 10 MFD 370V |
| Capacitor Included: | Y |
| Thermal Protection: | Automatic |
| Ambient Temperature (Celsius): | 40 |
| Insulation Class: | B |
| Mounting: | Belly Band, Thru Bolts, Shell Holes & Resilient Rings |
| Wiring: | 36" Leads |
| Volts (V): | 208/230 |
| Amperage: | 1.3, 1.9, 2.8, 3.5, 3.6 |
| Shaft Dimensions (in): | 1/2 x 5.0 |
| Ambient Temperature (C): | 40 |
| Mounting Type: | Belly Band, Thru Bolts, Shell Holes & Resilient Rings |
| Shaft (in): | 1/2 x 5.0 |
| Body Length (In): | 4.86 |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 03459, 03464, 51-2322-41, 5KCP39KGV201, 76N18, 786382005696, 786674020536, D833, DD-3464, FD6000, R43601, R6-R43601, X073
