5460 : White Rodgers 1/6-1/2HP Direct Drive Motor 5.6" Dia. 1075 RPM, 115V
SHIPS: IMMEDIATELY
Compare at: $ 356.94
You Save: $ 32.45
SHIPS: IMMEDIATELY

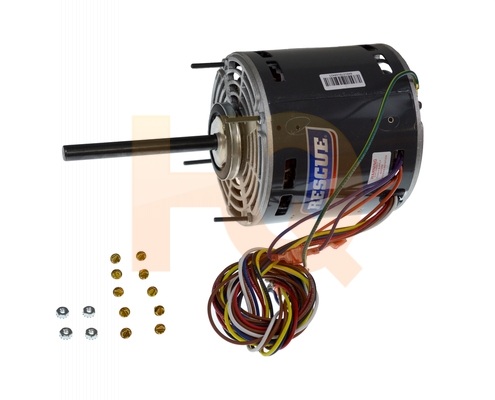

White Rodgers 5460 Direct Drive Rescue Motor Multi-HP & Multi Fit. 5.6" Diameter. Less Inventory Required for Truck Stock! Used on Commercial, Residential Air Handlers and Furnaces.
Please Note: Part formally from Emerson.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Bearing: | Sleeve |
| Frame: | 48Y |
| HP: | 1/6, 1/5, 1/4, 1/3, 1/2. |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amps: | 2.8, 3.6, 5.5, 6.9, 7.3 |
| Phase: | 1 |
| RPM: | 1,075 |
| Speeds: | 5 |
| Rotation: | Reversible |
| Body Diameter (Inches): | 5.6 |
| Enclosure: | Open Air Over |
| Shaft: Diameter x Length (Inches): | 1/2 x 5.0 |
| Duty: | Continuous Air over |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 4.8 |
| Capacitor: | 10 MFD 370V |
| Capacitor Included: | N |
| Thermal Protection: | Automatic |
| Ambient Temperature (Celsius): | 40 |
| Insulation Class: | B |
| Mounting: | Belly Band, Thru Bolts, Shell Holes & Resilient Rings |
| Wiring: | 36" Leads |
| Volts (V): | 115 |
| Amperage: | 2.8, 3.6, 5.5, 6.9, 7.3 |
| Shaft Dimensions (in): | 1/2 x 5.0 |
| Ambient Temperature (C): | 40 |
| Mounting Type: | Belly Band, Thru Bolts, Shell Holes & Resilient Rings |
| Shaft (in): | 1/2 x 5.0 |
| Body Length (In): | 4.8 |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 01-0698, 014129054608, 024-23271-000, 03463, 3463, 45460, 51-22858-01, 51-22873-01, 51-23012-41, 58EDB0603143, 58EDB0603385, 58ES680018, 58ES680020, 58GS950209, 5KCP39GGA02CS, 5KCP39KGP750BS, 5KCP39KGV234, 5KCP39LGM301AS, 63873, 76N17, 95-0153, AIC3463, D2835, DD-3463, EME5460, FDL6001, GE3463, HC41ME121, HC41SB115, HC41SE120, HC43680001, HC43AE115, HC43AE115A, HC43ME116, HC43SA110, HC43SA120, HC43SB110C, HC43SB115, HC43SE116, HC43SX101, MOT16952, P251-2202, P251-2206, P257-E5460, R43600, R6-R43600, S1-FHM3463, UE685, WG840463, X033, X077
