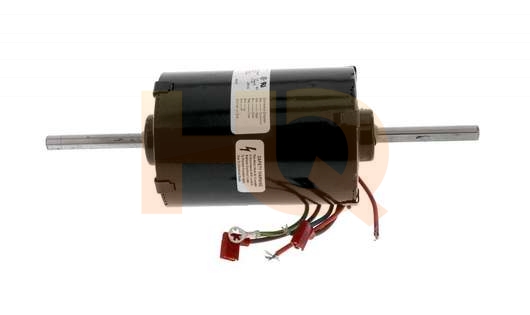

R3-R366 : Motor HRV 1/15HP Direct Drive 3.3" Dia. 1630RPM 3 Speed 115V Venmar
$800.09
Compare at: $ 880.10
You Save: $ 80.01
SKU: R3-R366
SHIPS:
2 - 3 WEEKS Rotom R3-R366 OEM Replacement Heat Recovery Ventilation Motor.
Use with Venmar Units.
Replaces 02100, 7190-1523,1206, 12151.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Mounting Type: | 2 Side Studs for Cradle |
| Body Diameter (Inches): | 3.3 |
| Frame: | 3.3 |
| HP: | 1/7 |
| Volts: | 115 |
| Amps: | 1.70 |
| RPM: | 1630 |
| Speeds: | 3 |
| Rotation Double Shaft: Lead End: | CW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Shaft: Diameter x Length (Inches): | 3/8 x 2.97 & 3/8 x 3.0 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 4.75 |
| Capacitor: | 7.5MFD 370V |
| Capacitor Included: | N |
| Mounting: | 2 Side Studs for Cradle |
| Wiring: | Leads |
| Volts (V): | 115 |
| Amperage: | 1.70 |
| Shaft Dimensions (in): | 3/8 x 2.97 & 3/8 x 3.0 |
| Has 360 Photos: | Yes |
| Clearance: | Yes |
Replaces Old Numbers: B005NGBIGG, B018HBTWCU, B01N2KDB1G, EW-OM4R-R9MJ, OX-3853-H620, R366, Y7-7W2R-50EO
