50027910-001 : Honeywell 50027910-001 Home Differential Pressure Switch, for TrueSTEAM Humidifier
Compare at: $ 165.04
You Save: $ 15.00
SHIPS: IMMEDIATELY
Honeywell Home TrueSTEAM Humidifier Differential Pressure Switch
The differential pressure switch senses changes in duct air pressure to confirm air movement, providing a safeguard that airflow is present during the operation of installed IAQ equipment, including the TrueSTEAM Humidification System. Must be Mounted vertically (upright) with Honeywell Home logo right-side up but can be mounted Remotely or right on the duct.

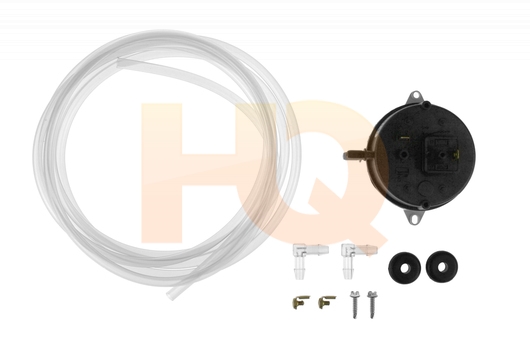

Includes 2 rubber grommets, 2 tube fitting elbows, 10 ft of 1/4 in O.D. tubing, 1 Differential Pressure Switch, 2 #8 x 3/4 in. sheet metal screws, and 2 terminal adapters.
Product Downloads
Product Specifications
Installation Instructions
| Product Specifications | |
|---|---|
| Dimensions (in.): | 4-13/64 in. wide x 3-15/16 in. high x 2-1/64 in. deep |
| Dimensions (mm): | 107 mm wide x 100 mm high x 51 mm deep |
| Temperature Range (F): | -40 F to 190 F |
| Temperature Range (C): | -40 C to 88 C |
| Electrical Ratings: | 5 amp resistive @ 24VAC; One common (C), One Normally Open (NO) quick-connect terminals |
| Dimensions (in): | 4-13/64 in. wide x 3-15/16 in. high x 2-1/64 in. deep |
| Electrical Rating (amp): | 5 amp resistive @ 24VAC; One common (C), One Normally Open (NO) quick-connect terminals |
Replaces Old Numbers: 85267338196, AN-GAD5-7IJZ, B008D7T3VE
Fits Models: HM506A2000 , HM506DG115 , HM506VPIAQ , HM506W1005 , HM509A2000 , HM509DG115 , HM509H8908 , HM512A2000 , HM512DG115 , HM512H8908 , HM512VPIAQ , HM512VPIAQ , HM609A1000 , HM612A1000 , YHM506HRO1 , YHM509HRO1 , YHM512HRO1 , YHM512VRO1 ,
