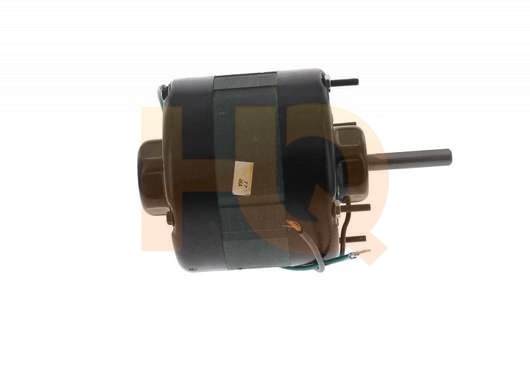

UE-46A : A.O. Smith 1/12 HP Direct Drive Fan & Blower Motor 4.3" Dia. 1550 RPM, 115V
SKU: UE-46A
A.O. Smith 46 Direct Drive Blower Motor. 4.3" Diameter.
Applications Furnace Fan, Roof & Wall Ventilators, Condenser Fans, Direct Drive Blowers, and Unit Heaters.
OEM replacement for Luxaire, Home, Lau, Taylor Freezer, Slirpy, Duotherm, Loren Cook, Lennox, Bohn, Wagner, Reznor, Lincoln, Miller, Hobart, Westinghouse, and similar applications.
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Wiring: | Leads |
| Service Factor: | 1.00 |
| Body Diameter (Inches): | 4-5/16 |
| Frame: | 4.3 |
| HP: | 1/12 |
| Volts (V): | 115 |
| Volts: | 115 |
| Amperage: | 2.60 |
| Amps: | 2.60 |
| Frequency: | 60Hz |
| Phase: | 1 |
| RPM: | 1,550 |
| Rotation: | CCW |
| Speeds: | 1 |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Duty: | Continuous Air Over |
| Shaft: Diameter x Length (Inches): | 3/8 x 2.5 |
| Shaft Dimensions (in): | 3/8 x 2.5 |
| Shaft (in): | 3/8 x 2.5 |
| Motor Type: | Shaded Pole |
| Body Length (Inches): | 3.5 |
| Thermal Protection: | Automatic |
| Mounting: | Stud |
| Body Length (In): | 3.5 |
| Mounting Type: | Stud |
| Weight Lbs.: | 7.0 |
| Weight (lbs): | 7.0 |
| Has 360 Photos: | Yes |
| Clearance: | Yes |
Replaces Old Numbers: UE46, UE-46
