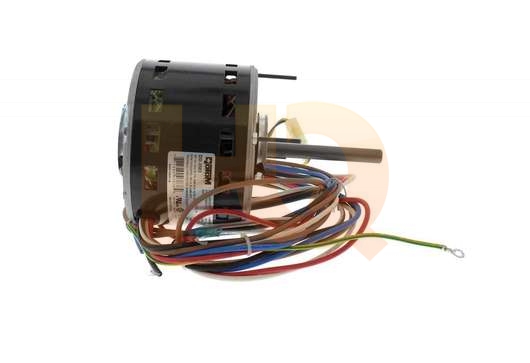

DD-3583 : Rotom 1/4 HP Direct Drive Motor 5.5" Dia.1075 RPM, 115V
Compare at: $ 157.49
You Save: $ 14.32
SHIPS: IMMEDIATELY
Rotom DD-2583 Direct Drive Motor.
Replaces A.O. Smith DL1026, Diversitech WG840583, Emerson 1863, Fasco D721, Embraco E201, GE 3583, Marathon X000, Universal Electric 533, and Rotom R43583.
Product Downloads
Product Specifications
Product Specifications
| Product Specifications | |
|---|---|
| Body Diameter (Inches): | 5.5 |
| Frame: | 48Y |
| HP: | 1/4 |
| Volts (V): | 115 |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amperage: | 4.4 |
| Amps: | 4.4 |
| RPM: | 1,075 |
| Speeds: | 3 |
| Rotation: Opposite Shaft End: | CCW |
| Rotation: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Shaft Dimensions (in): | 1/2 x 4.0 |
| Duty: | Continuous Air Over |
| Shaft: Diameter x Length (Inches): | 1/2 x 4.0 |
| Motor Type: | Permanent split capacitor |
| Shaft (in): | 1/2 x 4.0 |
| Body Length (Inches): | 4.22 |
| Capacitor: | 5MFD 370V |
| Capacitor Included: | N |
| Thermal Protection: | Y |
| Ambient Temperature (C): | 40 |
| Ambient Temperature (Celsius): | 40 |
| Insulation Class: | B |
| Mounting: | Stud, strap & base, Resilient rings |
| Mounting Type: | Stud, strap & base, Resilient rings |
| Body Length (In): | 4.22 |
| Wiring: | 60" Leads |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 03383, 03583, 0533, 11863, 147, 1863C, 3151, 3271, 3383, 3983, 40172B001, 43583, 533, 5KCP39FGN651, 5KCP39FGN651S, 5KCP39KG3312, 5KSP29MK2631, 663001002598, 777980038384, 79001, 8716017010, D721, D924, DL1026, EM3583, EM-E201, F-094, F48SE6L12, F48SG6L2, F48SG6L9, FDC1026S, FSP4016, GE3583, HC37AE117, HVA805, K3741, K4957, K55HXBPT1370, K6870, K7376, K819, K8892, R42130, R42411, R43583, S196-052-01, S196-52-1, S196-CV128-2, S3271, S3976, S3983, UE0533, UE130, UE147, VK4945, X001
ALTERNATIVE PARTS
