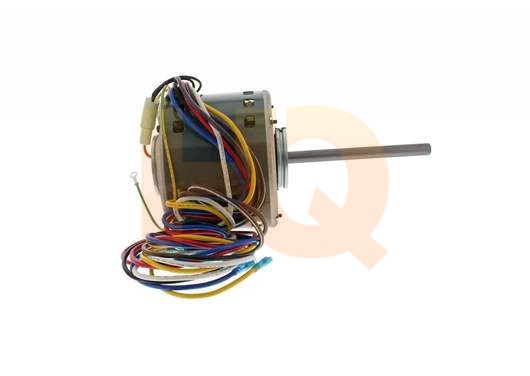

DD-1314 : Rotom Multi-HP 1/3, 1/4, 1/6, 1/7 Direct Drive Motor 5.5" Dia. 1075 RPM, 115V
Compare at: $ 226.60
You Save: $ 20.60
SHIPS: IMMEDIATELY
Rotom DD-1314 Motor Direct Drive Multi HP Multi Fit. 5.5" diameter
Replaces A.O. Smith DL1026, DL1036, Carrier HC41SE117, HC41SE121, P257 8583, P257 8585, Coleman 1486-236P,
Emerson 11864, 1863, 1864, Lennox P-8-7505, 32663, LFM13, ICP 1009045, 1008415, GE 3583, 3585, Marathon X003,
Rotom R43583, R43585
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Enclosure: | Open |
| Frame: | 48 |
| HP: | 1/3, 1/4, 1/6, 1/7 |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amps: | 6.0 |
| RPM: | 1,075 |
| Speeds: | 4 |
| Rotation: | Reversible |
| Bearing: | Sleeve |
| Body Diameter (Inches): | 5.5 |
| Shaft: Diameter x Length (Inches): | 1.2" x 6.0" with extensions |
| Motor Type: | Permanent split capacitor |
| Body Length (Inches): | 4.39 |
| Capacitor: | 7.5MFD 370V |
| Capacitor Included: | N |
| Thermal Protection: | Automatic |
| Mounting: | Stud, Strap & Base, Resilient Rings |
| Insulation Class: | B |
| Wiring: | 60" colored leads |
| Volts (V): | 115 |
| Amperage: | 6.0 |
| Shaft Dimensions (in): | 1.2" x 6.0" with extensions |
| Mounting Type: | Stud, Strap & Base, Resilient Rings |
| Shaft (in): | 1/2" x 6.0" with extensions |
| Body Length (In): | 4.39 |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 1008415, 1009045, 1486-236P, 1863, 32663, 3583GE, 3585GE, 777980042480, HC41SE117, HC41SE121, HE3G242N, HQ613136UN, LFM13, P257-8583, P257-8585
ALTERNATIVE PARTS
DD-3583 - $143.17
DD-3585 - $164.16
