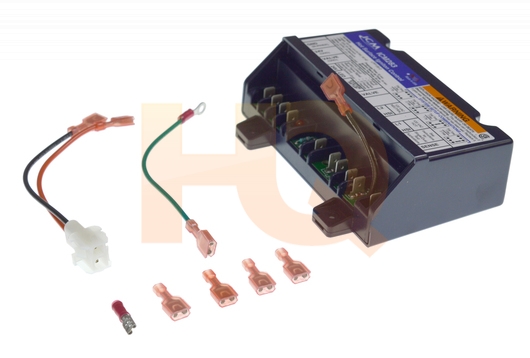

ICM283 : Universal Hot Surface Ignition Module, ICM Controls
SKU: ICM283
ICM Controls ICM283 Hot Surface Ignition Module Universal Replacement
Replaces Honeywell S8910U-1000 also Some Robertshaw & White Rodges Modules
Specifications:
Input Voltage: 120 & 24 VAC, 60Hz
HSI: 120V, 5A max
Valve: 24V, 2A max
Total: 24V Load = 0.4 + valve load
Pre-purge Time: 32 seconds
Trial Time: 4 or 7 sec (switch selectable)
Ignition Trials to Lockout: 1 or 3 (switch selectable)
Flame Sense: Single rod or Dual rod
Gas Type: Natural or LP
Weight/Dimensions:
Weight: 0.4
Height: 1.625
Width: 5.375
Length: 4
| Product Specifications | |
|---|---|
| Clearance: | Yes |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 24-ICM283
