T1-R3670 : Rotom Universal 1 Speed Utility C Frame Motor Kit 1/150HP 3000RPM 115/240V with Blades & Brackets
Compare at: $ 111.64
You Save: $ 10.15
SHIPS: IMMEDIATELY

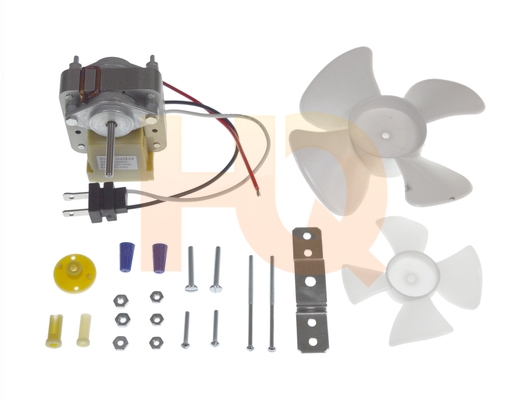

Rotom R3670 Motor Kit Universal C Frame with 2 Fan Blades & Mounting Hardware
Replaces All C Frame & 3-1/2" Round Motors with these specifications
Use with Exhaust Fans, Range Hoods, Reach & Walk in Cooler & Freezer Evaporators, Ventilator Fans, Electric Unit Heaters, Forced Air Heaters
Product Downloads
Product Specifications
Product Specifications
| Product Specifications | |
|---|---|
| Frame: | C Frame |
| HP: | 1/150 |
| Volts: | 115/240 |
| Amps: | 0.45-115V & 0.25-240V |
| RPM: | 3000 |
| Speeds: | 1 |
| Rotation: | Mechanically Reversible |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Shaft: Diameter x Length (Inches): | 3/16 x 1.5 |
| Body Stack ( Thickness ): | 0.63 |
| Motor Type: | Shaded Pole |
| Mounting: | Stud |
| Wiring: | 2 Prong Plug |
| Duty: | Air Over |
| Body Length (Inches): | 1.50 Stack |
| Volts (V): | 115/240 |
| Amperage: | 0.45-115V & 0.25-240V |
| Shaft Dimensions (in): | 3/16 x 1.5 |
| Mounting Type: | Stud |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 184763, 777980000206, 90-3670, 90971, B011D3OCJW, B01N4SK0T2, EM675, HVA530, ID-PDIX-QX3C, J675, T1-R635, TJR3670
