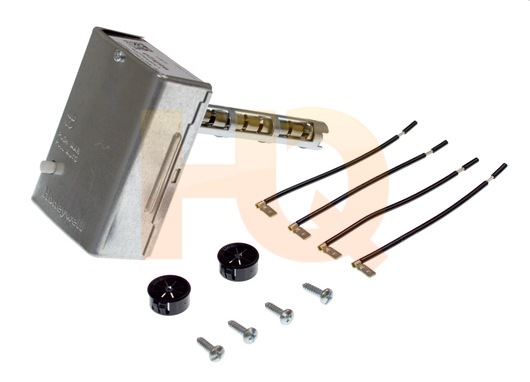

L4064B2228 : Resideo-Honeywell L4064B2228 Fan and Limit Switch, 5" Insertion, for Forced Air Heating Systems
Compare at: $ 313.15
You Save: $ 28.47
SHIPS: IMMEDIATELY
The Resideo Honeywell L4064B2228 Controls high limit and fan motors in forced air heating systems.
Features:
Three wiring terminal options available for easy installation.
Push-in receptacles for stripped wire.
Female receptacles for 1/4 inch male flag connectors.
Auxiliary screw terminals.
Field adjustable fan and high limit settings.
L4064B,W, and R models have a manual fan switch that overrides the fan control to keep the fan running continuously.
TRADELINE models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse
Fan switch makes and high limit switch breaks on temperature rise
Turns fan on and off according to plenum temperature via helical bimetal sensing element. High limit stop set at 200F (93 C). Breakaway Jumper included. Includes manual and automatic fan on/off settings. Replaces L4064A,B,E. Surface or universal mounting bracket available (50077438-001/U)
Product Downloads
Installation Instructions- English
| Product Specifications | |
|---|---|
| Dimensions (in.): | 4 9/32 in. high x 3 in. wide x 1 19/32 in. deep excluding element |
| Dimensions (mm): | 109 mm high x 76 mm wide x 40 mm deep excluding element |
| Electrical Ratings: | Fan- (AFL)-- 14 A @ 120 Vac: 7 A @ 240 Vac; Fan- (ALR)-- 84 A @ 120 Vac: 42 A @ 240 Vac; Limit- (AFL)-- 8 A @ 120 Vac: 4 A @ 240 Vac; Limit- (ALR) 48 A @ 120 Vac: 24 A @ 240 Vac |
| Temperature Ratings (C): | Maximum Ambient-- At switch 88 C: At element: 177 C; High Limit-- 38 C to 121 C; Fan-on-- 18 C to 102 C; Fan-off-- 10 C to 93 C |
| Temperature Ratings (F): | Maximum Ambient-- At switch: 190 F: At element: 350 F; High Limit-- 100 F to 250 F; Fan-on-- 65 F to 215 F; Fan-off-- 50 F to 200 F; High Limit Stop-- 200 F; Fan-on Stop-- 125 F; Fan-off Stop-- 100 F |
| Operating Temperature Range (F): | -40 F to +190 F |
| Operating Temperature Range (C): | -40 C to +88 C |
| Differential Temperature (F): | High limit 25 F |
| Differential Temperature (C): | High limit 14 C |
| Element Insertion Length (in.): | 5 in. |
| Element Insertion Length (mm): | 127 mm |
| Pilot Duty Ratings: | 0.25 A @ 0.25 to 12 Vdc; 2 A @ 24 Vac |
| Approvals, Underwriters Laboratories Inc.: | Listed File MP466, Guide MBPR |
| Approvals, Canadian Standards Association: | Certified: File No. LR1622 |
| Dimensions (in): | 4 9/32 in. high x 3 in. wide x 1 19/32 in. deep excluding element |
| Electrical Rating (amp): | Fan- (AFL)-- 14 A @ 120 Vac: 7 A @ 240 Vac; Fan- (ALR)-- 84 A @ 120 Vac: 42 A @ 240 Vac; Limit- (AFL)-- 8 A @ 120 Vac: 4 A @ 240 Vac; Limit- (ALR) 48 A @ 120 Vac: 24 A @ 240 Vac |
| Element Insertion Length (in): | 5 in. |
| UL Classification: | Listed File MP466, Guide MBPR |
| CSA Approved: | Certified: File No. LR1622 |
| Has 360 Photos: | Yes |
| Clearance: | Yes |
Replaces Old Numbers: 13P94, 54-F93K-UCVG, 76E36, 7A-8Y6R-TRH8, 85267000208, 852670002088, 85267126571, B00097BE5O, B008FM4592, B00ET2ETZC, B00GZZVHTC, B018A36TAI, B018HC2WGC, B018HFJM3A, B018V1B7BK, B01N4F7ASB, B01N7JF2FM, DS-KV6X-RZAJ, FH-YUE4-1583, FR-OH5M-O60V, L4064B1295, L4064B2178, L4064B2228/U, L4064B2947, L4064W1080, PW-HRK7-RQI3, TY-2CKU-3WW4, W603134
